Pro Farming Tractors.
Generosity in Performance and Trust. More Power, Less Fuel Consumption!

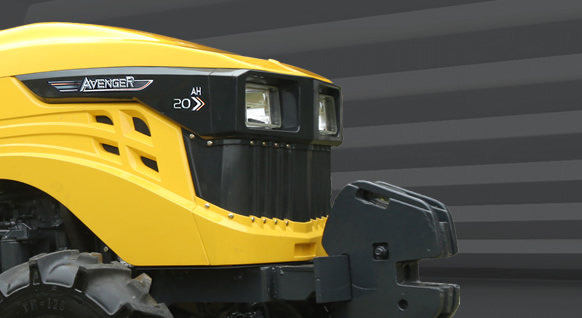

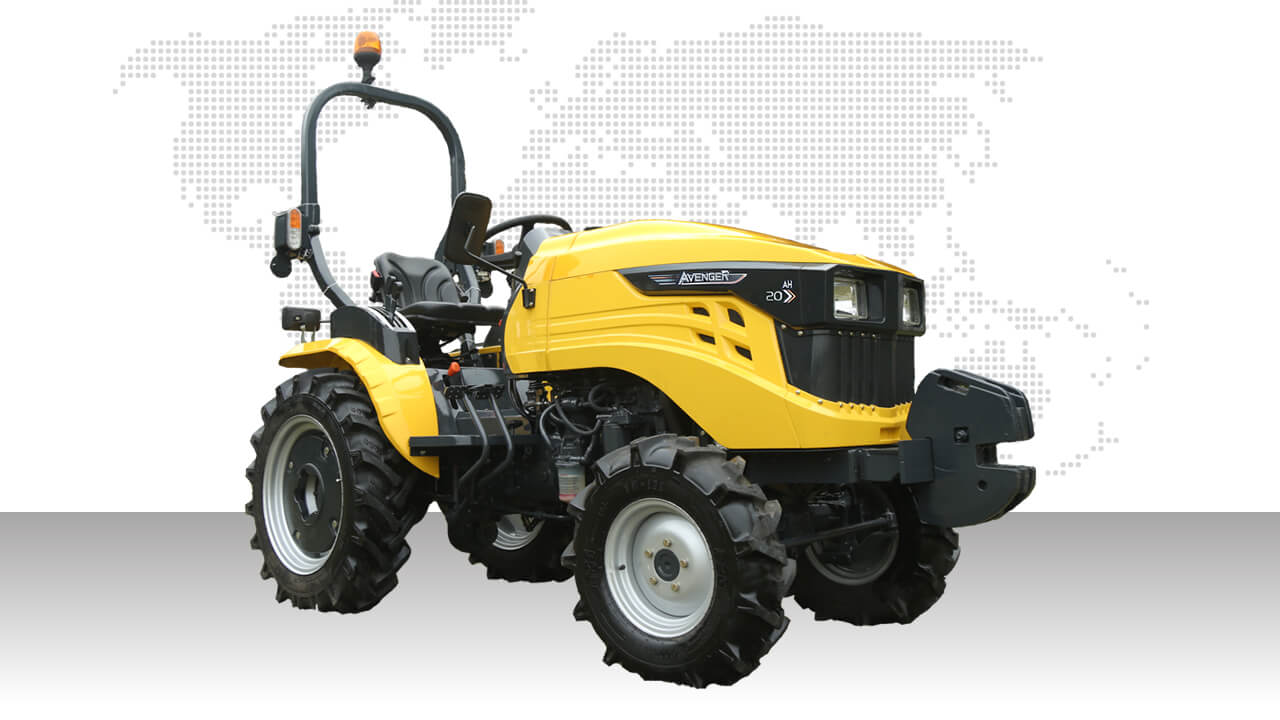

The new generation AVENGER Tractor naturally aspirated and Powerful Engines are synonymous with High Performance, Reduced Fuel Consumption, great torque reserve and respect for the environment. In particular, Avenger 20 is capable of exciting performances. 20-HP model meets the Euro III Emission Standards. Daily maintenance and Service Checks are facilitated by the new frontal opening hood.
Performance, Power and Quality.
Product Parameters.
MODEL / MAKE |
AVENGER 20 4WD |
---|
HP Category | 20 |
Type | 4 Cycle, Vertical Overhead Valve, Cylinder in Line, Swirl Chamber Type |
No. of Cylinders | 3 Cylinders |
Bore / Stroke (mm) | 76 / 70 |
Rated Engine (RPM) | 2700 |
Displacement (CC) | 952 |
Fuel Pump | In-Line Type (ND-PFR M Type) |
Air Cleaner Type | Dry Type |
Cooling System | Water Cooled |
Type | Heavy Duty Dry Type Single |
Plate Size | Dia 224 mm |
Gear Box | 6F + 2R Synchromesh |
Gear | LOW | HIGH |
1 | 1.55 | 6.1 |
2 | 2.61 | 10.27 |
3 | 4.2 | 16.5 |
Reverse | 1.16 | 4.58 |
Type | 2 Lever, ADDC |
Hydraulic Pump | Gear Type |
Linkage | TPL Category-I |
Lifting Capacity (Kg.) | 1000 |
Type | Power Steering |
Type | R PTO, 3 Speeds / Live PTO (Optional) |
Splines | 6 |
P.T.O Speed | 543 / 914 / 1470 / R 407 @ 2500 / 540 @ 2100 (Optional) |
Fuel Tank | 25 |
Engine Sump | 4.2 |
Cooling System | 4.8 |
Transmission & Hydraulic | 26 |
Steering System | 1.3 |
Battery | 12V, 75 Ah |
Alternator | 12V, 40A |
Starter Motor | 12V, 1.2 KW |
Without Breaks (m) | 2.5 |
Front | 5.00 - 12 |
Rear | 8.00 - 18 |
Weight (Kg.) | 1120 |
Differential | |
Total Ratio | 1:11.27 |
Oil Capacity (Ltr.) | 2.5±10% |
Type | Multi Disc, Oil Immersed |
Overall Length | 2885 mm |
Width | 1080 mm |
Height | 2070 mm |
Ground Clearance | 170 mm |
Wheel Base | 590 mm |
Front Track | 890 mm |
Rear Track | 930 mm |
Note: As per our policy is that of continuous research and development, product specifications may change without any prior notice.
