The AVENGER TAF is best for Harvesting in the Wet Fields.
Generosity in Performance and Trust. More Power, Less Fuel Consumption!

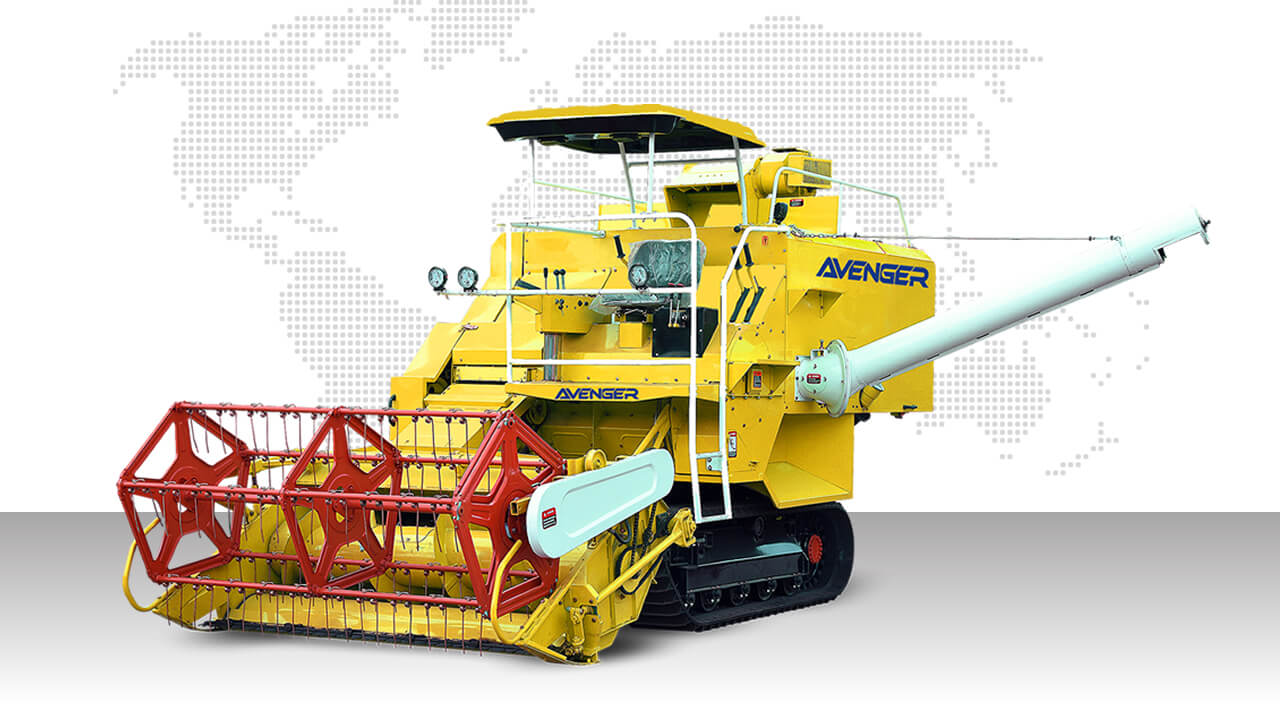

AVENGER TAF - Track Combine Harvester with T.A.F. (Tangential Axial Flow) Technology is the most successful Paddy Harvester. It represents the best performance, productivity and serviceability available at the moment. AVENGER TAF is the reliable track combine harvester now with new features and color. This Track Combine Harvester is designed for harvesting Paddy Crops in Wet/Soft fields.
NextGen Design.
Performance, Power and Quality.
Performance, Power and Quality.
High Performance Three Cylinder Engine Lower Fuel Consumption and Low Maintenance, with the Highest Torque.
Technicial Specifications
Product Parameters.
MODEL / MAKE |
AVENGER TAF |
|---|
| Power | 76 HP @ 2200 RPM |
| Number of Cylenders | Four |
| Air Cleaner | Dry |
| Cooling System | Water Cooled |
| Hydrostatic Transmission comprising of hydraulic variable displacement, double pump and twi fixed displacement motors. |
| Width | 2.1 m |
| Cutting Height Range (mm) | 30-990 |
| Reel Drive | Through V Belt |
| Reel Height Adjustment | Hydraulic |
| Feeder Housing | Chain Type Feed Rack |
| Threshing and separation rotor housed in single housing. |
| Threshing Drum Dia (mm) | 460 |
| Threshing Drum Width (mm) | 560 |
| Separating Cylinder Dia (mm) | 440 |
| Separating Cylinder Width (mm) | 1245 |
| Drum Speed (rpm) | 940 |
| Length (mm) | 555 |
| Clearance | Front: 17, Rear: 17 |
| Upper Sieve Area (Sq. Mtr.) | 0.67 |
| Upper Sieve Area (Sq. Mtr.) | 0.53 |
| Total | 1.2 Sq. Mtr. |
| Grain Tank (Sq. Mtr.) | 1.3 (Approx) |
| Fuel Tank (ltr.) | 100 (Approx) |
| Capacity & Rating | 12V, 100 Ah Battery Starting, Complete Lightning Equipment, Front and Rear Lights |
| Length of Belt on Ground (mm) | 1755 |
| Track Width (mm) | 1400 |
| Width of Belt (mm) | 450 |
| Number of Track Rollers (Each Side) | 5 |
| Number of Rubber Grousers (Each Side) | 60 |
| Height of Rubber Grouser (mm) | 30 |
| Nominal Ground Pressure (kg/Sq. cm) | 0.31 |
| Length (mm) | Working: 5650, Transport: 5650 |
| Width (mm) | Working: 4485, Transport: 2640 |
| Height (mm) | Working: 2785, Transport: 2785 |
| Ground Clearance (mm) | 400Body Frame, 240 Hydraulic Motor |
| Total Weight in Kg (Approx) | 4840 |
Note: As per our policy is that of continuous research and development, product specifications may change without any prior notice.
